Single-Ended Hydro Assist Rams

$252.60
SKU
Single-Ended Hydro Assist Rams

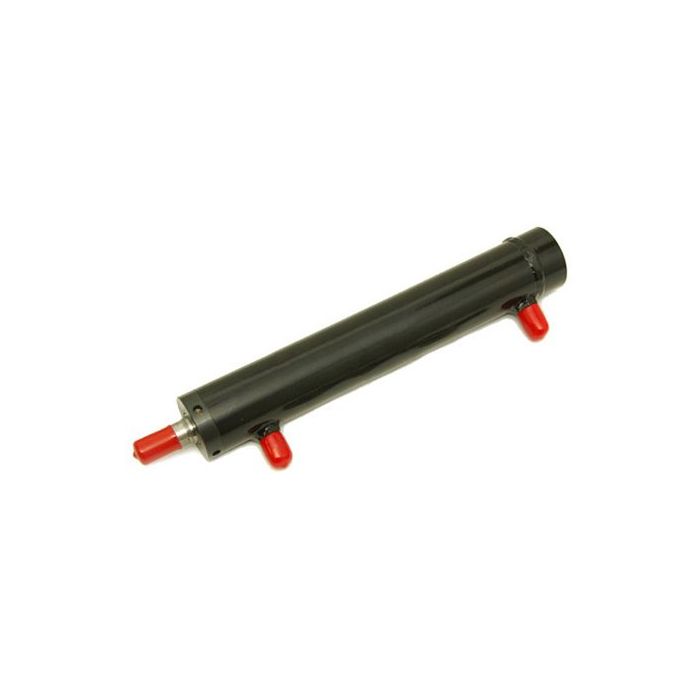

Trail-Gear Single-Ended Hydro Assist Rams

Experience the benefits of hydro assisted steering with a range of rams for a full spectrum of applications.

Our Single-Ended Ram models are available in 6" stroke versions for Toyota steering knuckles and 8" stroke versions for Dana-style knuckles. They all have high-temperature inner and outer seals for high-performing longevity.

Rod-ends for these Rams are sold separately. The 1-1/2" and 2" bore Rams have a 3/4" diameter rod that will accept a 3/4" female rod end. The 2-1/4" bore Rams have a 1-1/8" diameter rod with a 3/4"-16 pitch threaded hole in its end to accept 3/4"-16 threaded male rod ends.

See the table below for dimensional and force specifications.

Trail-Gear Single-Ended Hydro Assist Ram Models & Specifications FORCE WITH 1650 PSI PUMP
SKU RAM TYPE CYLINDER O.D. BORE KNUCKLE
TYPE
STROKE ROD
DIAMETER
SHAFT SIDE
(RETRACTION)
NON-SHAFT SIDE
(EXTENSION)
130602-1-KIT Single-Ended 1-7/8" (48 mm) 1-1/2" (38 mm) Toyota 6" (152 mm) 3/4" (19 mm) 2186 lbs (992 kg) 3888 lbs (1764 kg)
303517-KIT Single-Ended 1-7/8" (48 mm) 1-1/2" (38 mm) Dana 8" (203 mm) 3/4" (19 mm) 2186 lbs (992 kg) 3888 lbs (1764 kg)
130600-1-KIT Single-Ended 2-3/8" (60 mm) 2" (51 mm) Toyota 6" (152 mm) 3/4" (19 mm) 4455 lbs (2021 kg) 5184 lbs (2351 kg)
130601-1-KIT Single-Ended 2-3/8" (60 mm) 2" (51 mm) Dana 8" (203mm) 3/4" (19 mm) 4455 lbs (2021 kg) 5184 lbs (2351 kg)
304093-0600 Single-Ended 2-5/8" (67 mm) 2-1/4" (57 mm) Toyota 6" (152 mm) 1-1/8" (29 mm) 4920 lbs (2232 kg) 6560 lbs (2976 kg)
304093-0800 Double-Ended 2-5/8" (67 mm) 2-1/4" (57 mm) Dana 8" (203 mm) 1-1/8" (29 mm) 4920 lbs (2232 kg) 6560 lbs (2976 kg)


Note: Use only standard power steering fluid with this product. The use of ATF fluid, semi-synthetic fluid, or full synthetic fluid is not recommended and will void the warranty.

⚠ WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

  • All Rams Have High Temp Inner and Outer Seals
  • 1-1/2" and 2" Bore Versions have 3/4" Diameter Rod
  • 2-1/4" Bore Versions have a 1-1/8" Diameter Rod
  • Rod ends are available separately
  • 1-1/2" and 2" Bore Models Require 3/4" Female Rod Ends
  • 2-1/4" Bore Models Use 3/4" Male Rod Ends

Non-Vehicle-Specific
