Universal Heavy Duty Hydro Assist Ram

18 In Stock
Universal Heavy Duty Hydro Assist Ram

Universal Heavy-Duty Hydro Assist Ram

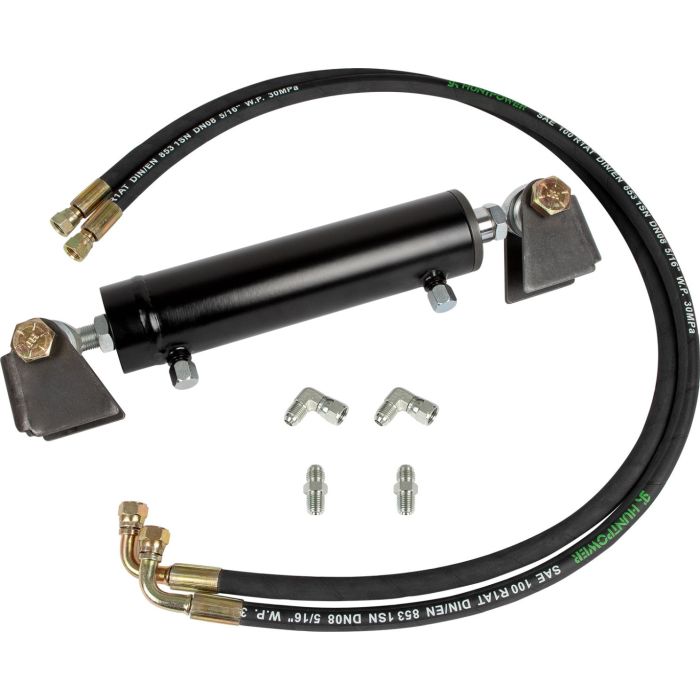

Our universal application kit features a heavy-duty single-ended hydraulic ram in your choice of 6” or 8” stroke. Our specially designed ram features a 1-1/8” rod for maximum strength and a 2-1/4” diameter bore for maximum steering force. The mounting brackets provided have fitments made from ¼” thick-formed steel. Brackets fit most applications. Our specially formed, easy-to-install brackets make installing our kit a breeze. Brackets may require additional cutting and/or grinding for some applications. Hardware, #6 JIC hoses, and steering box fittings are included. We recommend a 6” stroke for most Toyota applications and an 8” stroke for Dana applications.

NOTE: Use only standard power steering fluid with this product. The use of ATF fluid, semi-synthetic fluid, or full synthetic fluid is not recommended and will void the warranty. Required additional components: High steer kit, steering box drilled & tapped for hydro assist.

⚠ WARNING - Cancer and Reproductive Harm -

  • Heavy-Duty 6" or 8" stroke single-ended hydraulic ram with high temperature inner and outer seals.
  • 1-1/8” diameter rod for maximum strength.
  • 2-1/4” ram bore.
  • Brackets are formed from 1/4" thick steel and fit most applications (additional cutting and/or grinding may be required for some applications).
  • ¾” rod ends with jam nuts
  • (2) #6 JIC Hoses
  • (2) #6 JIC 90-degree elbows
  • (2) 1/4" NPT x #6 JIC steering box fittings
  • Mounting hardware included
  • Force with 1650 psi pump
  • Shaft side (retraction) = 4920 lbs (2232 kg)
  • Non-shaft side (extension) 6560 lbs (2976 kg)


Download installation instructions here.

Installation Instructions

All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.

Please read and review our return and warranty requirement document before sending in products.


Warranty Exclusions

Trail-Gear Inc. warranty does not cover, and Trail-Gear Inc. shall not be liable for, any undertaking, representation, or agreements made by dealers or other third parties selling Trail-Gear products, except where such agreements are within the provisions of this Warranty.

Specifically excluded from this warranty are failures caused by lack of maintenance, misuse, negligence, modification, abuse, improper application, crash damage, installation or operation, or failures caused by unauthorized service or use of unauthorized parts.

Additionally excluded from this warranty are parts that are subject to normal wear and tear, such as bushings, fluids, hoses, gaskets, belts, etc. Products not manufactured by Trail-Gear Inc. are excluded from any warranty and shall be handled with the original manufacturer.

All parts used in a competitive racing environment are excluded from this warranty. If, after inspection, a part returned, under any warranty, is deemed to be ineligible for warranty repair or replacement, the part may be repaired or replaced for a discounted cost. Return shipping charges will apply. Any part for which a warranty replacement is sought must be returned to Trail-Gear Inc. before any replacement items can be shipped. All replacement parts shipped before the suspect part has been received and evaluated by Trail-Gear, MUST BE PAID IN FULL. In such a case, after the suspect part has been received and approved for a warranty replacement, the purchase price for the replacement will be refunded.

To begin your warranty claim:
  • Please contact Trail-Gear Inc. at 559-252-4950 or email [email protected] prior to returning any product under warranty to verify that warranty is still in effect.
  • Products must be shipped back to Trail-Gear Inc. at the expense of the customer. Ship all products to:
    5356 E. Pine Avenue
    Fresno, CA 93727.
  • Please place a clearly marked copy of the original invoice inside the package.
  • Please include a short note stating the problem you are experiencing.

If any of the above mentioned policy is not met, the package will be refused or warranty claim denied. By completing the steps above, this will ensure faster processing of your claim so that Trail-Gear can get your product back to you as quickly as possible. All warranties are generally processed within 2-3 business days of Trail-Gear receiving the parts from you. Additional delays may be incurred if product needs additional testing or repairing.

If you are an international customer, please email the warranty department at [email protected] to receive further instruction. International customers may have the option to field destroy an approved warranty to avoid costly return shipping. In this case, any shipping charges for replacement parts will be at the expense of the customer.
