Trail-Creeper 2005-2022 Tacoma Crawl Boxes - 2.28 and 4.70 Gear Ratios

% of 100
Sale Price $2,799.85 Regular Price $3,293.95
8 In Stock

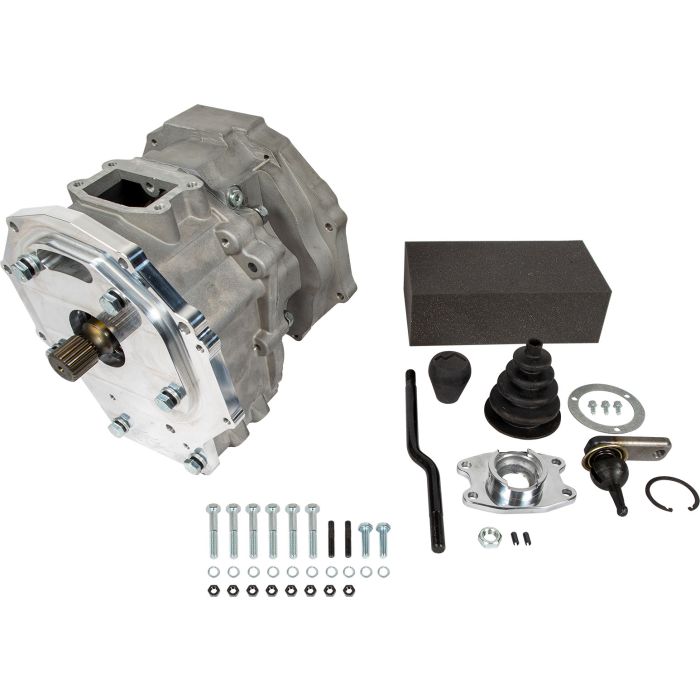

Trail-Creeper 2005-2022 Tacoma Crawl Boxes

Trail-Creeper 2005-2022 Tacoma Crawl Boxes - 2.28 and 4.70 Gear Ratios

Transfer cases are made from two basic sections; the reduction section and the 4WD section. To build a dual transfer case, two reduction boxes are bolted back-to-back with a dual case adapter. These two are then bolted to a 4WD section. Using the Tacoma-specific adapters, this crawl box is ready to bolt onto the front of a Tacoma Chain drive transfer case. In addition, this kit also comes with the necessary adapter and hardware to bolt a dual case to the back of your Tacoma transmission. Units are completely rebuilt and inspected. The low range gear ratio is 4.70 or 2.28. Floorboard and driveshaft modifications are required for dual transfer case installation. No core charge. One-year warranty. This adapter kit is compatible with any vehicle with a Toyota A750F Transmission and several other applications, please see the application data tab for full application information.

NOTE: Shifter installation may differ from instructions for non 2nd Gen (2005-2015) Toyota Tacoma Applications.

⚠ WARNING - Cancer and Reproductive Harm -

  • This kit will enable you to install a mini truck crawl box in your Tacoma.
  • With this 4.70:1 or 2.28:1 crawl box installed, your transfer case will now have 4 speeds. Having 4 speeds available allows the driver to select the proper ratio to provide the optimal torque and control for any terrain.
  • Assuming a 4.88 ring and pinion along with a 3.52:1 transmission first gear, a dual transfer case with 4.70 gear option will provide a double low final drive ratio of 207:1 and the final drive ratio with 2.88 gear option is 101:1.
  • All units are built in the USA at Trail-Gear headquarters.
  • Includes all hardware required for installation.
  • Shifter Kit included.


  • Not compatible with V6 manual transmission models.
  • Shifter installation may differ from instructions provided.

2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma

2007 Toyota FJ Cruiser
2008 Toyota FJ Cruiser
2009 Toyota FJ Cruiser
2010 Toyota FJ Cruiser
2011 Toyota FJ Cruiser
2012 Toyota FJ Cruiser
2013 Toyota FJ Cruiser
2014 Toyota FJ Cruiser

2005 Toyota Tundra
2006 Toyota Tundra
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra

2003 Toyota 4Runner
2004 Toyota 4Runner
2005 Toyota 4Runner
2006 Toyota 4Runner
2007 Toyota 4Runner
2008 Toyota 4Runner
2009 Toyota 4Runner

Download installation instructions here.

Tacoma Gear Drive T-Case Shifter Kit

Crawl Box Installation

All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.

Please read and review our return and warranty requirement document before sending in products.


Warranty Exclusions

Trail-Gear Inc. warranty does not cover, and Trail-Gear Inc. shall not be liable for, any undertaking, representation, or agreements made by dealers or other third parties selling Trail-Gear products, except where such agreements are within the provisions of this Warranty.

Specifically excluded from this warranty are failures caused by lack of maintenance, misuse, negligence, modification, abuse, improper application, crash damage, installation or operation, or failures caused by unauthorized service or use of unauthorized parts.

Additionally excluded from this warranty are parts that are subject to normal wear and tear, such as bushings, fluids, hoses, gaskets, belts, etc. Products not manufactured by Trail-Gear Inc. are excluded from any warranty and shall be handled with the original manufacturer.

All parts used in a competitive racing environment are excluded from this warranty. If, after inspection, a part returned, under any warranty, is deemed to be ineligible for warranty repair or replacement, the part may be repaired or replaced for a discounted cost. Return shipping charges will apply. Any part for which a warranty replacement is sought must be returned to Trail-Gear Inc. before any replacement items can be shipped. All replacement parts shipped before the suspect part has been received and evaluated by Trail-Gear, MUST BE PAID IN FULL. In such a case, after the suspect part has been received and approved for a warranty replacement, the purchase price for the replacement will be refunded.

To begin your warranty claim:
  • Please contact Trail-Gear Inc. at 559-252-4950 or email prior to returning any product under warranty to verify that warranty is still in effect.
  • Products must be shipped back to Trail-Gear Inc. at the expense of the customer. Ship all products to:
    5356 E. Pine Avenue
    Fresno, CA 93727.
  • Please place a clearly marked copy of the original invoice inside the package.
  • Please include a short note stating the problem you are experiencing.

If any of the above mentioned policy is not met, the package will be refused or warranty claim denied. By completing the steps above, this will ensure faster processing of your claim so that Trail-Gear can get your product back to you as quickly as possible. All warranties are generally processed within 2-3 business days of Trail-Gear receiving the parts from you. Additional delays may be incurred if product needs additional testing or repairing.

If you are an international customer, please email the warranty department at to receive further instruction. International customers may have the option to field destroy an approved warranty to avoid costly return shipping. In this case, any shipping charges for replacement parts will be at the expense of the customer.
