Toyota Rear Leaf Spring Kit
Rear Leaf Springs

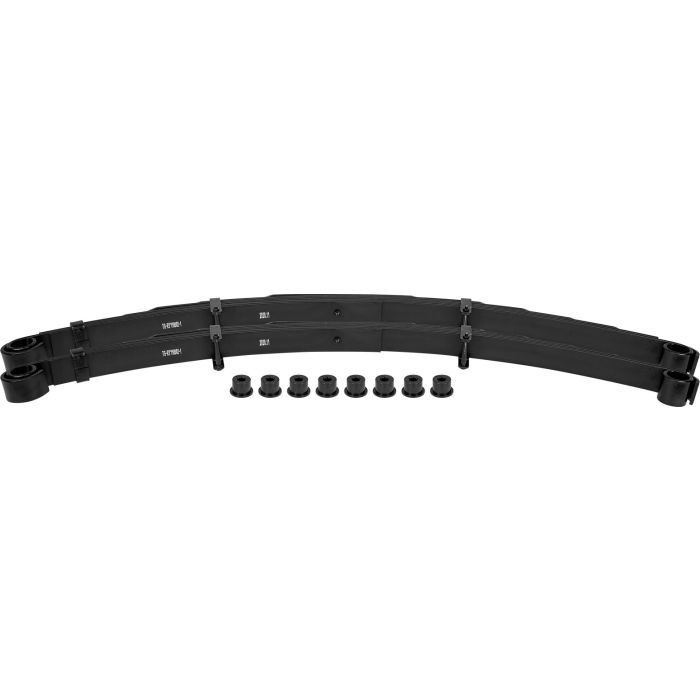

Our rear springs feature a full military wrap on the front and the 1/4 wrap on the rear. Spring rate is 235 lbs per inch. Leaf pack is 7 leaves plus a special torque leaf to reduce axle wrap. Springs are 56 5/8" long as measured along the top leaf. Pin to center of front mount is 27 1/2", pin to center of rear mount is 29 5/8". New poly bushings are included with springs.
Note: These springs are not a direct fit. The leaf spring hangers and/or shackle mounts will need to be relocated. Also, the bushings are designed for use with M18 greasable bolts, which in most instances are larger than the stock leaf spring bolts.
Available in the following sizes:
- 3" Springs, Rear, 110016-1-KIT
- 4" Springs, Rear, 110012-1-KIT
- 5" Springs, Rear, 110014-1-KIT
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Features a full military wrap on the front and the 1/4" wrap on the rear
- Leaf pack is 7 leaves
- Springs are 56 5/8" long as measured along the top leaf
- Pin to center of front mount is 27 1/2", pin to center of rear mount is 29 5/8"
- New poly bushings are included with springs
The spring rates for the rear leaf springs are as follows:
- 3” Rear Leaf Spring = 210 lbs/inch
- 4” Rear Leaf Spring = 200 lbs/inch
- 5” Rear Leaf Spring = 190 lbs/inch
- 1979-1995 Toyota Pickup (All Engines)
- 1985-1995 Toyota 4Runner (All Engines)
- 1995-2004 Toyota Taacoma (All Engines)
For Pickup/4Runner, refer to the steps for relocating the spring hangers and shackle mounts in the Classic Rear Lift Installation Instructions.
For Tacoma, refer to the steps for relocating the spring hangers and shackle mounts in the Tacoma Rear Lift Kit Installation Instructions.
1. Install bushings into the springs using polyurethane-safe grease. If applicable, install the sleeves into the bushings.
2. Mount the springs to the vehicle. The end with the military wrap should be at the front.
3. Check to make sure the long side of the bolts on the spring clamps are pointed towards the inside of the vehicle.
4. Fully cycle the suspension and verify that no part of the springs interfere with other suspension components (e.g. shocks). Also verify that the brake lines are long enough and do not stretch at maximum droop or get pinched by other components. In some instances, leaf spring clamps may need to be removed or relocated to avoid interference with other components.
