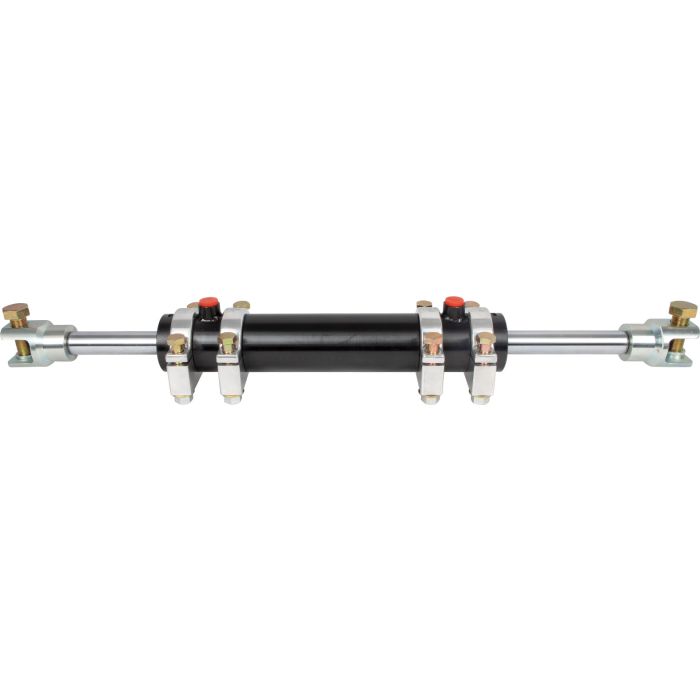

Double Ended Ram and Clevis Kit
Rock Assault™ Double Ended Ram and Clevis Kits
Through years of research, development, and testing we at Trail-Gear have developed our double ended ram to meet the tough demands of top level rock crawling competitors and the toughest trails in the world. Based on our experience we knew exactly what we wanted in a ram, and what we didn't.
Most rams on the market only have one rod seal. We started with the primary and secondary rod seal to insure that fluid leakage would never be an issue. We also included two wiper seals in our design to make sure that dirt and debris stay on the trail and don't get into your steering system. In addition, we designed our ram with a Triple Lip Piston Seal for consistent steering with no drift or fluid bypassing the piston.
In true Trail-Gear style we also had to make our ram the strongest on the market, so we added a feature that you will not see on any other ram on the market. We designed ours with a piston wear band and a rod bushing. The bushing allows the rod to absorb much higher side loads. We also machined our piston shaft out of a single piece of 4340 chromoly. Other rams on the market use a two-piece welded or threaded piston shaft that can fail under severe loads.
Our Double Ended Ram and Clevis Kits have a 6", 8", or 10" stroke x 2.25" bore x 1.125” rod. The cylinder has a black zinc-plate finish while the rod has 3/4x16 female threads on each end and is made entirely out of 4340 chromoly material.
The 6 inch ram and clevis kit has 6 total inches of travel and is perfect for Toyota's and narrowed Dana 44s.
The 8 inch ram and clevis kit has 8 total inches of travel and was made to work with Dana 44's and custom length Dana 60 applications.
The 10 inch ram and clevis kit has 10 total inches of travel and is used for buggies and comp rigs with up to 45 degree steering radius.
- (1) 6", 8", or 10" Double Ended Ram
- (4) Cylinder Clamps
- (2) Clevis Ends
- (2) Clevis End Bolts
- (2) Grade 8 Bolts
- (4) Spacers
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Primary and secondary rod seal to insure that fluid leakage would never be an issue
- Two wiper seal design
- Triple Lip Piston Seal for consistent steering with no drift or fluid bypassing the piston
- The bushing allows the rod to absorb much higher side loads
- 4340 chromoly steel piston shaft
- Our Double Ended Ram have a 6", 8", or 10" stroke x 2.25" bore x 1.125” rod
- The cylinder has a black zinc-plate finish while the rod has 3/4x16 female threads on each end and is made entirely out of 4340 chromoly material
- The 6 inch ram and clevis kit has 6 total inches of travel and is perfect for Toyota's and narrowed Dana 44's.
- The 8 inch ram and clevis kit has 8 total inches of travel and was made to work with Dana 44's and custom length Dana 60 applications.
- The 10 inch ram and clevis kit has 10 total inches of travel and is used for buggies and comp rigs with up to 45 degree steering radius.
- Non-vehicle specific
All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.
Trail-Gear Inc. warranty does not cover, and Trail-Gear Inc. shall not be liable for, any undertaking, representation, or agreements made by dealers or other third parties selling Trail-Gear products, except where such agreements are within the provisions of this Warranty.
Specifically excluded from this warranty are failures caused by lack of maintenance, misuse, negligence, modification, abuse, improper application, crash damage, installation or operation, or failures caused by unauthorized service or use of unauthorized parts.
Additionally excluded from this warranty are parts which are subject to normal wear and tear, such as bushings, fluids, hoses, gaskets, belts, etc. Products not manufactured by Trail-Gear Inc. are excluded from any warranty and shall be handled with the original manufacturer.
All parts used in a competitive racing environment are excluded from this warranty. If, after inspection, a part returned, under any warranty, is deemed to be ineligible for warranty repair or replacement, the part may be repaired or replaced for a discounted cost. Return shipping charges will apply. Any part for which a warranty replacement is sought must be returned to Trail-Gear Inc. before any replacement items can be shipped. All replacement parts shipped before the suspect part has been received and evaluated by Trail-Gear, MUST BE PAID IN FULL. In such a case, after the suspect part has been received and approved for a warranty replacement, the purchase price for the replacement will be refunded.
- Please contact Trail-Gear Inc. at 559-252-4950 or email [email protected] prior to returning any product under warranty to verify that warranty is still in effect.
- Products must be shipped back to Trail-Gear Inc. at the expense of the customer.
- ATTN: WARRANTY
- 5356 E. Pine Avenue
- Fresno, Ca 93727.
Ship all products to:
- Please place a clearly marked copy of the original invoice on the outside of the package.
- Please include a short note stating the problem you are experiencing.
If any of the above mentioned policy is not met, the package will be refused or warranty claim denied. By completing the steps above, this will ensure faster processing of your claim so that Trail-Gear can get your product back to you as quickly as possible. All warranties are generally processed within 2-3 business days of Trail-Gear receiving the parts from you. Additional delays may be incurred if product needs additional testing or repairing.
If you are an international customer, please email the warranty department at [email protected] to receive further instruction. International customers may have the option to field destroy an approved warranty to avoid costly return shipping. In this case, any shipping charges for replacement parts will be at the expense of the customer.
