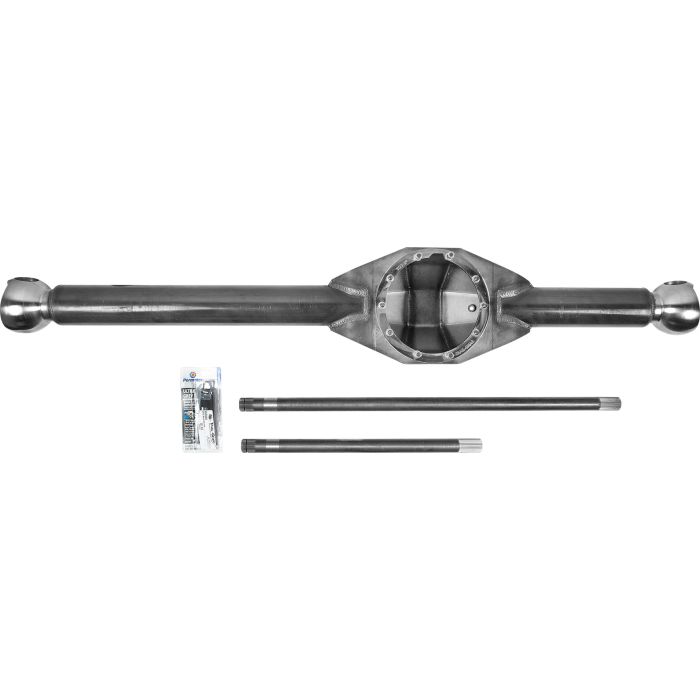

67" WMS Passenger Drop Fabricated Front Axle Housing
67" WMS Passenger Drop Fabricated Front Axle Housing
Known for their strength, light weight, and simplicity, Toyota axles are the perfect fit for many custom off-road projects. Factory Toyota axle housings are only available in a narrow range of widths which may not fit your needs. Trail-Gear Passenger Drop Fabricated Axle Housings allow you to use Toyota style axles in nearly any passenger drop custom build.
Trail-Gear’s 67” WMS Passenger Drop Fabricated Front Axle Housings can be used with Toyota 8”, 8” E-Locker and 8.4” differentials and feature all of the same specifications as our Rock Assault 9 axles. Our 6.5" offset passenger drop housings produce a WMS-WMS length of 67” using Toyota knuckle components. Both inner shafts are also included. This housing pairs perfectly with our 2005-2015 Toyota Tacoma Rear Axle Housing.
The knuckle balls included are completely new. Our knuckle balls are forged from 1035 steel, making them much stronger than stock and eliminating closed or bent knuckle balls.
We started with a 1/4" thick formed shell for the center section made out of ASTM A36 steel. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 36,000 psi! All of this is attached to an equally strong 1/2" thick faceplate for anchoring the ¼” wall 3.5” OD DOM axle tubes. The axle tubes are secured by the industry's first 3-point attachment system, giving the tubes superior support and engagement into the center section. We also face the center section to ensure your differential mounts flush against the axle housing to prevent leaks.
Part Number Descriptions:
TGI-308515: 67" WMS Driver Drop Fabricated Front Axle Housing - 8"
TGI-308516: 67" WMS Driver Drop Fabricated Front Axle Housing - 8.4"
TGI-308517: 67" WMS Driver Drop Fabricated Front Axle Housing - 8" E-locker
TGI-309280: 67" WMS Driver Drop Fabricated Front Axle Housing With Inspection Hole - 8"
TGI-309281: 67" WMS Driver Drop Fabricated Front Axle Housing With Inspection Hole- 8.4"
TGI-309282: 67" WMS Driver Drop Fabricated Front Axle Housing With Inspection Hole - 8" E-locker
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- 1/4” CNC formed center section
- 1/2” Formed faceplate
- DOM axle tube
- 3-point attachment system
- Faceplate is machined after welding to ensure that the differential mounts flush
- Accepts Toyota 8”, Toyota 8" e-locker or Toyota 8.4" differential
- Ships bare
- Includes brand new knuckle balls
- Produces 67" WMS axle with 6.5" offset Passenger Drop.
- Inner shafts are included.
If you have any questions on the use or installation of this product please contact our customer support at (559)-549-6737.
All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.
Trail-Gear Inc. warranty does not cover, and Trail-Gear Inc. shall not be liable for, any undertaking, representation, or agreements made by dealers or other third parties selling Trail-Gear products, except where such agreements are within the provisions of this Warranty.
Specifically excluded from this warranty are failures caused by lack of maintenance, misuse, negligence, modification, abuse, improper application, crash damage, installation or operation, or failures caused by unauthorized service or use of unauthorized parts.
Additionally excluded from this warranty are parts that are subject to normal wear and tear, such as bushings, fluids, hoses, gaskets, belts, etc. Products not manufactured by Trail-Gear Inc. are excluded from any warranty and shall be handled with the original manufacturer.
All parts used in a competitive racing environment are excluded from this warranty. If, after inspection, a part returned, under any warranty, is deemed to be ineligible for warranty repair or replacement, the part may be repaired or replaced for a discounted cost. Return shipping charges will apply. Any part for which a warranty replacement is sought must be returned to Trail-Gear Inc. before any replacement items can be shipped. All replacement parts shipped before the suspect part has been received and evaluated by Trail-Gear, MUST BE PAID IN FULL. In such a case, after the suspect part has been received and approved for a warranty replacement, the purchase price for the replacement will be refunded.
- Please contact Trail-Gear Inc. at 559-252-4950 or email firstname.lastname@example.org prior to returning any product under warranty to verify that warranty is still in effect.
- Products must be shipped back to Trail-Gear Inc. at the expense of the customer. Ship all products to:
- ATTN: WARRANTY
- 5356 E. Pine Avenue
- Fresno, CA 93727.
- Please place a clearly marked copy of the original invoice inside the package.
- Please include a short note stating the problem you are experiencing.
If any of the above mentioned policy is not met, the package will be refused or warranty claim denied. By completing the steps above, this will ensure faster processing of your claim so that Trail-Gear can get your product back to you as quickly as possible. All warranties are generally processed within 2-3 business days of Trail-Gear receiving the parts from you. Additional delays may be incurred if product needs additional testing or repairing.
If you are an international customer, please email the warranty department at email@example.com to receive further instruction. International customers may have the option to field destroy an approved warranty to avoid costly return shipping. In this case, any shipping charges for replacement parts will be at the expense of the customer.
