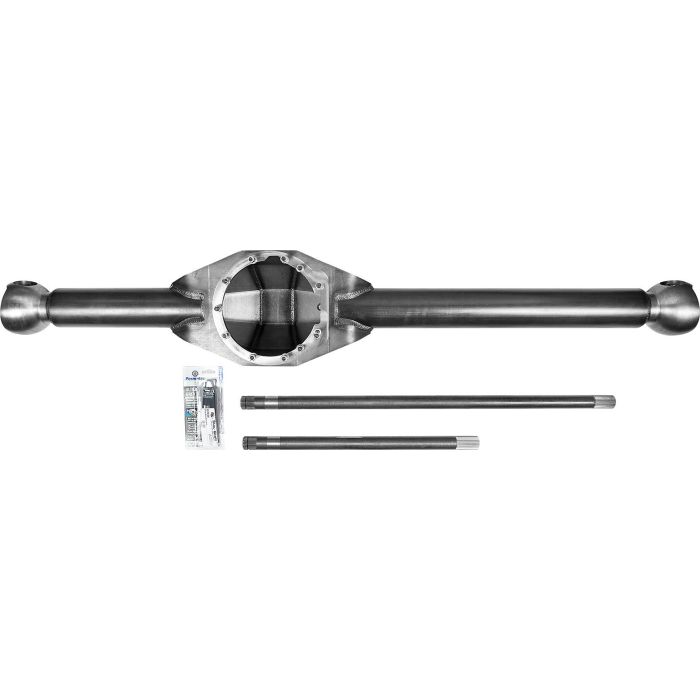

67" WMS Driver Drop Fabricated Front Axle Housing
67" WMS Driver Drop Fabricated Front Axle Housing
Known for their strength, light weight, and simplicity, Toyota axles are the perfect fit for many custom off-road projects. Factory Toyota axle housings are available in a narrow range of widths which may not fit your crawler well. Trail-Gear Fabricated Axle Housings allow you to use Toyota axles in nearly any width from the narrowest of moon buggies to full-size trucks.
Trail-Gear’s 67” WMS Driver Drop Fabricated Front Axle housings are available for Toyota 8”, 8" E-locker, or 8.4" differentials and feature all of the same specifications as our Rock Assault 9 axles. 67” WMS Driver Drop Fabricated Front Axle housings are made to produce a 67” WMS using Toyota knuckle components. Both inner shafts are also included. This housing pairs perfectly with our 2005-2015 Toyota Tacoma Rear Axle Housing.
The knuckle balls included are brand new, so no need to source 30 year old knuckle balls. Our knuckle balls are forged from 1035 steel, making them much stronger than stock and eliminating closed or bent knuckle balls.
We started with a 1/4" thick formed shell for the center section made out of ASTM A36 steel. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 36,000 psi! All of this is attached to an equally strong 1/2" thick faceplate for anchoring the ¼” wall 3.5” OD DOM axle tubes. The axle tubes are secured by the industry's first 3-point attachment system, giving the tubes superior support and engagement into the center section. We also face the center section to ensure your differential mounts flush against the axle housing to prevent leaks.
Part Number Description:
|TGI-307309||67" WMS Driver Drop Fabricated Front Axle Housing - 8"|
|TGI-307310||67" WMS Driver Drop Fabricated Front Axle Housing - 8.4"|
|TGI-307311||67" WMS Driver Drop Fabricated Front Axle Housing - 8" E-locker|
|TGI-307319||67" WMS Driver Drop Fabricated Front Axle Housing With Inspection Hole - 8"|
|TGI-307320||67" WMS Driver Drop Fabricated Front Axle Housing With Inspection Hole- 8.4"|
|TGI-307321||67" WMS Driver Drop Fabricated Front Axle Housing With Inspection Hole - 8" E-locker|
We recommend the addition of our Axle Housing Inspection Hole Kit to allow for easy fluid level and ring gear visibility. Just select "With Inspection Hole Kit Installed" in the drop down menu above. The kit is also available in a DIY installation version (requiring drilling through the differential housing and welding on a threaded bung).
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- 1/4” CNC formed center section
- 1/2” Formed faceplate
- DOM axle tube
- 3-point attachment system
- Faceplate is machined after welding to ensure that the differential mounts flush
- Accepts Toyota 8”, Toyota 8" e-locker or Toyota 8.4" differential
- Ships bare
- Includes brand new knuckle balls
- Produces 67" WMS axle with 6.5" offset Driver Drop.
- Inner shafts are included.
Download Specification Drawing here.Spec Drawing
- 2005 Toyota Tacoma
- 2006 Toyota Tacoma
- 2007 Toyota Tacoma
- 2008 Toyota Tacoma
- 2009 Toyota Tacoma
- 2010 Toyota Tacoma
- 2011 Toyota Tacoma
- 2012 Toyota Tacoma
- 2013 Toyota Tacoma
- 2014 Toyota Tacoma
- 2015 Toyota Tacoma
