2010+ 4Runner /FJ Cruiser All-Pro Long Travel Kit
2010+ 4Runner/FJ Cruiser All-Pro Long Travel Kit
Following the success of our original Tacoma Long Travel Kit All-Pro Off-Road is proud to reveal our High Clearance Long Travel Suspension kit for the 5th Gen 4Runners and 2010-2014 FJ Cruisers!

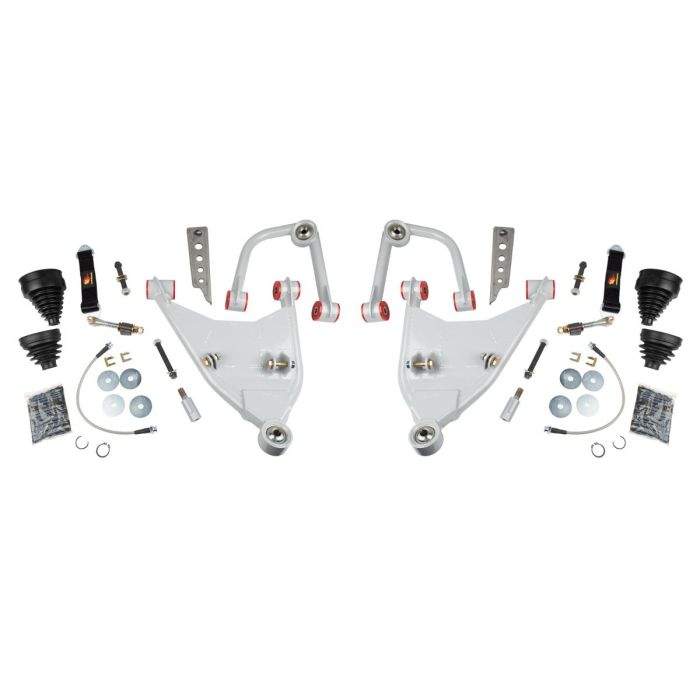

Engineered to get 12” of wheel travel while extending the track width by 2” per side, this new Long Travel Kit has been completely redesigned to give you an additional 2 inches of ground clearance. Our long travel kit features 4130 Chromoly tubular upper and lower control arms. The Lower Control Arms (LCAs) are boxed for maximum strength and plated for extreme durability. An integrated skid plate gives All-Pro Control Arms unbeatable skid protection on the trail. Our LCAs also feature a 1” uniball that replaces the weak factory lower ball joint.
The 2” wider Upper Control Arms (UCAs) feature an industry leading 1.25” uniball for maximum articulation and vertical travel. The uniball is adapted to fit to the factory spindle using heat-treated 17-4 Stainless Steel misalignment spacers. All four control arms, upper and lower, pivot on polyurethane bushings and have built in zerk fittings for easy maintenance.
From rocks to sand and everything in between, this long travel kit goes anywhere without sacrificing comfort, quality, and performance. Our lift kits are born and developed on some of the hardest trails around, including the Hammers, Rubicon, and Moab, the All-Pro LT kit is built tough!
Additional Parts Recommended for Installation:
Chromoly Axle Shafts (not included)
Our extended heat-treated 4340 chromoly axle shafts, made by Currie Enterprises, are required for 4×4 applications. They are inserted into the factory inner and outer CVs to retain 4WD. These are not included in the kit and must be purchased separately. Please contact our sales staff if you have questions before ordering.
Timbren Bumpstops (not included)
All-Pro has teamed up with Timbren SES to offer an upgraded bumpstop for use with our LT kit, or even stock. They are made of a softer compound than their usual options which are specifically designed for increased weight carrying capacity. Timbren Bumpstops provide a smoother stop than the factory bumpstop without needlessly limiting travel. Recommended for 33”+ tires. These are not included in the kit and must be purchased separately.
Long Travel Shocks (not included)
Long Travel Shocks are required for our Long Travel Kit. For best results, we recommend Fox 2.5 Factory Series Remote Reservoir Long Travel Coilover Shocks or the Fox 2.5 Factory Series Remote Reservoir Long Travel Coilover Shocks with DSC Adjustment.
Tire and Wheel Recommendations:
Max tire size without fiberglass fenders: 315/75/16 or 315/70/R17 (35″)
With Fiberglass (37″)
Max wheel backspacing: 4.75”
Alignment specs: Toe = factory; Camber = factory; Caster = 2.5-3 degrees
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Upper & Lower Arms constructed from 4130 Chromoly Steel DOM Tubing
- Grade 8 hardware included as needed, uses factory pivot bolts.
- Weight: 95 lbs (Upper and Lower Arms, Axles, Steering, Gussets)
- Max Wheel Backspace – 4.75″
2010 Toyota 4Runner
2011 Toyota 4Runner
2012 Toyota 4Runner
2013 Toyota 4Runner
2014 Toyota 4Runner
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner
2018 Toyota 4Runner
2019 Toyota 4Runner
2020 Toyota 4Runner
Download Installation Instructions for Tacoma Long Travel Kit Installation HereInstallation Instructions
