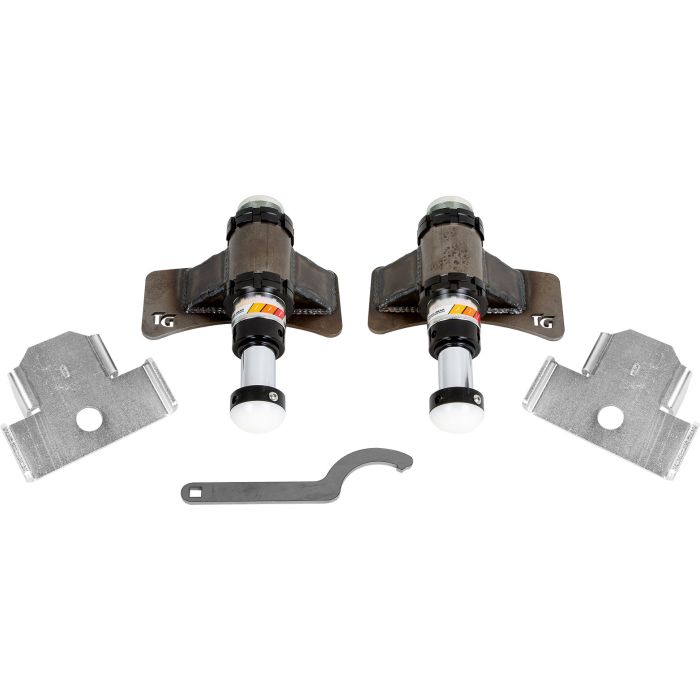

1995-2004 Tacoma Rear Performance Bump Stop Kit
1995-2004 Tacoma Rear Performance Bump Stop Kit
Whether you are hitting the trail or ripping through the desert, the Trail-Gear Rear Performance Bump Stops will allow you to get the most out of your vehicles suspension by eliminating harsh bottom outs. Our unique automatic velocity sensitive valving technology will save you time by eliminating the need to adjust shim packs. Fully rebuildable & tunable, Trail-Gear Bump Stops have proven to be superior. With cycle testing to over 1 million cycles in the lab, as well as enduring the punishing terrain during the most rigorous off-road endurance race in the world, King of the Hammers, we can say with confidence that these bump stops will improve your overall off-road experience for years to come. Trail-Gear bump stops help prevent damage from occurring to expensive shocks and suspension components by absorbing impacts at full suspension compression. Trail-Gear bump stops can be tuned by varying the amount of nitrogen charge through the Schrader valve on top. The handling and control you will experience with the Trail-Gear Rear Performance Bump Stops is unparalleled. Whether you are an experienced overlander, rock crawler, or desert racer, this product is sure to improve your overall off-road experience. There is nothing like riding on Trail-Gear Performance Bump Stops!
The 2" Stroke kit is recommended for spring-under applications. The 3" Stroke kit is recommended for most stock Tacoma applications. We recommend the 4" Stroke kit for lifted trucks and trucks with extended rear wheel travel.
AVAILABLE OPTIONS:
TGI-311095 - 1995-2004 Tacoma Rear Performance Bump Stop Kit - 2" Stroke
TGI-311096 - 1995-2004 Tacoma Rear Performance Bump Stop Kit - 3" Stroke
TGI-311097 - 1995-2004 Tacoma Rear Performance Bump Stop Kit - 4" Stroke
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Fully Rebuildable
- 2” Diameter Zinc-Plated Steel Body
- 1-1/4” Hard-Chromed & Polished Shaft
- Ships pre-charged to 200psi this is a great starting point for tuning your suspension.
- Tunable by adjusting the nitrogen pressure and or oil volume.
- Viton seals & O-rings.
- Threaded body with anodized aluminum locking rings allows quick & easy adjustment.
- O-Ring on shaft indicates amount of travel.
- Delrin contact pad for smooth & quiet operation.
- Available travel options 2”, 3” or 4”
- Schrader valve with cap for quick & easy pressure adjustment.
- 3/16” thick ASTM A36 Steel mounting brackets
- Zinc-plated 3/16” thick ASTM A36 Steel striker pad
- Welding required for installation
TOYOTA TACOMA (1995-2004) 1995 Toyota Tacoma 1996 Toyota Tacoma 1997 Toyota Tacoma 1998 Toyota Tacoma 1999 Toyota Tacoma 2000 Toyota Tacoma 2001 Toyota Tacoma 2002 Toyota Tacoma 2003 Toyota Tacoma 2004 Toyota Tacoma |
Download installation instructions here.
Installation InstructionsThis product carries a 6 month warranty on wear parts (delrin pads, seals, o-rings) and a 12 month warranty on all other parts.
