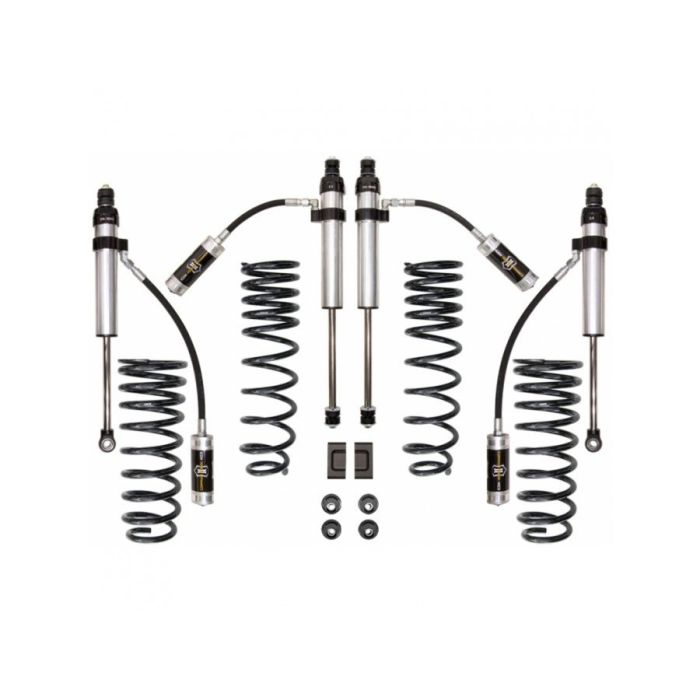

1991-1997 Toyota Land Cruiser 80 Series 3" Suspension System - Stage 2 (K53092)
After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 2 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended offroad use. This ICON Stage 2 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use.
WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
- 3” lift height
- Approximately 40% increased front wheel travel over stock
- Approximately 35% increased rear wheel travel over stock
- ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
- Vehicle specific tuned 2.5 Series front and rear shocks offer superior shock damping and control
- 2.5 body remote reservoir shocks with 7/8" shaft
- Corrosion resistant CAD plated shock body
- 6061 aircraft grade aluminum CNC machined components
- 100% bolt-on design means no drilling, cutting or welding necessary for install
- Made in the USA
WHEEL & TIRE FITMENT INFO:
OEM Wheels & Tires: Yes
Aftermarket Wheels: 8-8.5" Wide, 4.625" Backspace
Aftermarket Tires: 33 x 11.50
(Larger Tires May Fit but Fender Trimming and Modifications will be Required)
53005 (QTY.1) | 91-97 LAND CRUISER 3" FRONT DUAL RATE SPRING KIT
53006 (QTY.1) | 91-97 LAND CRUISER 3" REAR DUAL RATE SPRING KIT
53007 (QTY.1) | 91-97 LAND CRUISER SWAY BAR RELOCATION KIT
53008 (QTY.1) | 91-97 LAND CRUISER CASTER CORRECTION KIT
57801P (QTY.1) | 91-97 LAND CRUISER 80 0-3" FRONT 2.5 VS RR PAIR
57802P (QTY.1) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR PAIR
OPTIONS:
53009 | 91-97 LAND CRUISER BRAKE LINE KIT +3"
TOYOTA LAND CRUISER FJ80
(1991-1997)
1991 Toyota Land Cruiser FJ80
1992 Toyota Land Cruiser FJ80
1993 Toyota Land Cruiser FJ80
1994 Toyota Land Cruiser FJ80
1995 Toyota Land Cruiser FJ80
1996 Toyota Land Cruiser FJ80
1997 Toyota Land Cruiser FJ80
If you have any questions on the use or installation of this product please contact our customer support at (559)-549-6737
See manufacturer for details.
