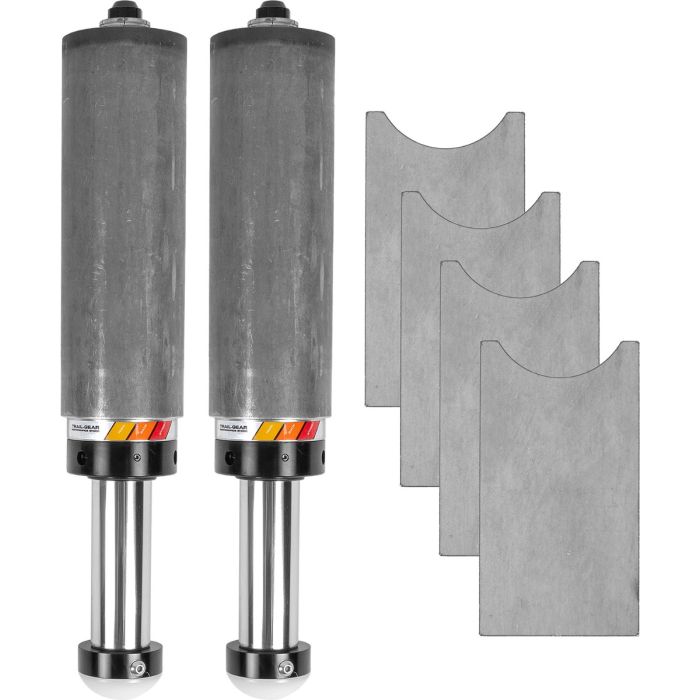

Trail-Gear Performance 2.5” Smooth Body Pin Top Bump Stop Sets - 4" Stroke

Trail-Gear Performance 2.5” Smooth Body Pin Top Bump Stop Sets

Whether you are hitting the trail or ripping through the desert, the Trail-Gear Performance 2.5” Bump Stops will allow you to get the most out of your vehicles suspension by eliminating harsh bottom outs, and will absorb more impact energy than our 2.0” Performance Bump Stops. We recommend our 2.5” Performance Bump Stops for vehicles over 5,000 lbs or trucks with highly leveraged A-arms or trailing arms. Our unique automatic velocity sensitive valving technology will save you time by eliminating the need to adjust shim packs. Fully rebuildable & tunable, Trail-Gear Bump Stops have proven to be superior. With cycle testing to over 1 million cycles in the lab, as well as enduring the punishing terrain during the most rigorous off-road endurance race in the world, King of the Hammers, we can say with confidence that these bump stops will improve your overall off-road experience for years to come. Trail-Gear bump stops help prevent damage from occurring to expensive shocks and suspension components by absorbing impacts at full suspension compression. Trail-Gear bump stops can be tuned by varying the amount of nitrogen charge through the Schrader valve on top. The handling and control you will experience with the Trail-Gear Performance 2.5” Bump Stops is unparalleled. Whether you are an experienced overlander, rock crawler, or desert racer, this product is sure to improve your overall off-road experience. There is nothing like riding on Trail-Gear Performance Bump Stops!

AVAILABLE OPTIONS:

TGI-310925 - Trail-Gear Performance 2.5” Smooth Body Bump Stop Sets - 2” Stroke
TGI-310926 - Trail-Gear Performance 2.5” Smooth Body Bump Stop Sets - 3” Stroke
TGI-310927 - Trail-Gear Performance 2.5” Smooth Body Bump Stop Sets - 4” Stroke

Note: Bump stops are pre-charged to approximately 200 psi, which is a good starting point for most applications. To fine tune the bump stop you will need to release pressure through the Schrader valve or add pressure via a nitrogen fill kit (nitrogen fill kit not included).

Extended & Collapsed Lengths

2” Stroke: 9-11/16” Extended, 7-11/16” Collapsed
3” Stroke: 11-11/16” Extended, 8-11/16” Collapsed
4” Stroke: 13-7/8” Extended, 9-7/8” Collapsed

Note: Shorter bump stops require higher internal pressures than longer bump stops which results in a harder impact. We recommend that you select longest bump stops that don't interfere with your up travel or cause you to be riding on them at ride height.
