Trail-Gear Rock Assault Double-Ended Rams

$418.01
SKU
Double Ended Rams

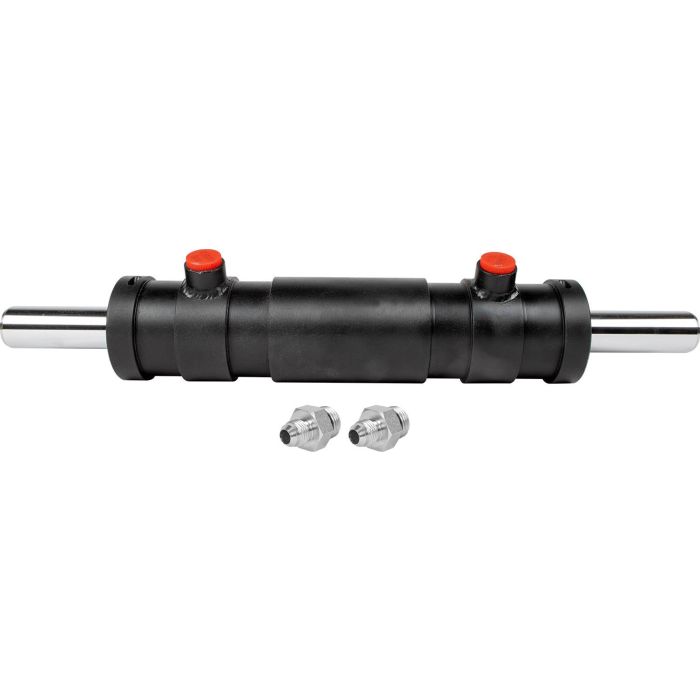

Rock Assault™ Double Ended Ram

Through years of research, development, and testing we at Trail-Gear have developed our double ended ram to meet the tough demands of top-level rock crawling competitors and the toughest trails in the world. Based on our experience we knew exactly what we wanted in a ram, and what we didn't.

Most rams on the market only have one rod seal.  We started with the primary and secondary rod seal to ensure that fluid leakage would never be an issue. We also included two wiper seals in our design to make sure that dirt and debris stay on the trail and don't get into your steering system. In addition, we designed our ram with a Triple Lip Piston Seal for consistent steering with no drift or fluid bypassing the piston.

In true Trail-Gear style we also had to make our ram the strongest on the market, so we added a feature that you will not see on any other ram on the market.  We designed ours with a piston wear band and a rod bushing.  The bushing allows the rod to absorb much higher side loads. We also machined our piston shaft out of a single piece of 4340 chromoly. Other rams on the market use a two-piece welded or threaded piston shaft that can fail under severe loads.

Our Double Ended Ram have a 6", 8", or 10" stroke x 2.25" bore x 1.125" rod.  The cylinder has a black zinc plate finish while the rod has 3/4x16 female threads on each end and is made entirely out of 4340 chromoly material.

Rams have -8 SAE ports to accommodate different sizes of JIC fittings.  Choose between the option of #6 JIC or #8 JIC fittings.

The 6-inch ram has 6 total inches of travel and is perfect for OEM Toyota axles, all Rock Assault Toyota-style axles, and narrowed Dana 44 axles.

The 8-inch ram has 8 total inches of travel and was made to work with Dana 44s and custom length Dana 60 applications.

The 10-inch ram has 10 total inches of travel and is used for Rock Assault 9 axles and other custom axles with up to 45-degree steering radius.

Note.If you are using our Rock Assault 9 Housing, you will need to use the 10" Ram for your steering setup.

#6 JIC connectors are compatible with all Trail-Gear Power Steering hoses.

#8 JIC connectors are for high-flow off-road racing applications.  You will need to have custom hoses made to connect to Trail-Gear PowerFlow pumps and steering components.

Note. Use only standard power steering fluid with this product. The use of ATF fluid, semi-synthetic fluid, or full synthetic fluid is not recommended and will void the warranty.

⚠ WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

  • Primary and secondary rod seal to insure that fluid leakage would never be an issue
  • Two wiper seal design
  • Triple Lip Piston Seal for consistent steering with no drift or fluid bypassing the piston
  • The bushing allows the rod to absorb much higher side loads
  • 4340 chromoly steel piston shaft
  • Our Double Ended Ram have a 6", 8", or 10" stroke x 2.25" bore x 1.125” rod
  • The cylinder has a black zinc-plate finish while the rod has 3/4x16 female threads on each end and is made entirely out of 4340 chromoly material
  • The 6 inch ram and clevis kit has 6 total inches of travel and is perfect for Toyota's and narrowed Dana 44's.
  • The 8 inch ram and clevis kit has 8 total inches of travel and was made to work with Dana 44's and custom length Dana 60 applications.
  • The 10 inch ram and clevis kit has 10 total inches of travel and is used for buggies and comp rigs with up to 45 degree steering radius.
  • Rams use -8 SAE ports and are available with eather #6 or #8 JIC fittings

  • Non-vehicle specific

If you have any questions on the use or installation of this product please contact our customer support at (559)-549-6737
