Rock Assault Samurai Rear Axle Housing Kit

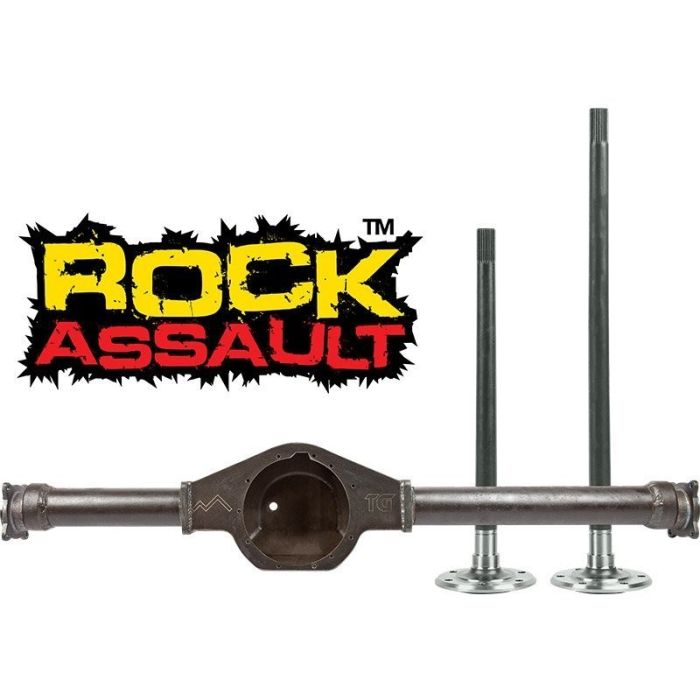

Rock Assault™ Samurai Rear Axle Housing Kit
Trail-Gear is proud to introduce "The Strongest Samurai Axle Housing Ever Made". The Samurai Rock Assault Axle Housing Kit is a Toyota IFS width axle housing that is offset for a Samurai t-case. This housing features a heavy-duty, press formed, 1/4" plate steel center section shell that is specially shaped to ensure a minimum of 3/4" additional clearance under the differential. The differential mounting surface is made from 1/2” plate steel and comes with our Differential Stud Eliminator Kit to ensure that your differential never pulls out of the housing. The outer offset flanges are made from 4130 chromoly to prevent distortion or bending. Axle tubes are made from 1/4” thick DOM tubing, with a 3” outer diameter.
This exclusive design features axle tubes that have been offset above the housing centerline. The inner axles ride near the bottom of the axle tubes rather than in the center. The results are an increase of 3/8" ground clearance under the axle tubing. The center section is offset to line up with the Samurai t-case so that your driveline does not vibrate from being offset.
The Samurai Rock-Assault axle housings use stock or aftermarket 1986-1995 Toyota Pickup/4Runner brake backing plates and brake assemblies and uses a custom length chromoly axle shaft that Trail-Gear is also very proud to manufacture. The Samurai Rock-Assault axle housings also use a Toyota 8" differential. An optional fill/inspection cap can be installed for an additional fee.
Overall housing length is 51 1/2 inches from mounting flange to mounting flange. Axle is shipped unpainted and lightly oiled to prevent rusting. We recommend degreasing housing inside and out before installation and painting.
This housing uses a Toyota 8" differential.
- Samurai Rear Axle Housing, 141038-3-KIT
- Samurai Rear Axle Housing, Electric Locker Style, 141044-3-KIT
- Samurai Rear Axle Housing, With Inspection Hole Kit, TGI-308776
- Samurai Rear Axle Housing, Electric Locker Style, With Inspection Hole Kit, TGI-308777
- Samurai Rock Assault Rear Axle Housing
- Chromoly Samurai axles
- Differential stud eliminator kit
- Differential drain plug
- Ultra grey silicone
- We recommend the addition of our Axle Housing Inspection Hole Kit to allow for easy fluid level and ring gear visibility. Just select "With Inspection Hole Kit Installed" in the drop down menu above. The kit is also available in a DIY installation version (requiring drilling through the differential housing and welding on a threaded bung)
- In order to achieve full ground clearance, you will need to grind the bottom of the differential housing flange flush with the axle housing!
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Heavy-duty, press formed, 1/4" plate steel center section shell that is specially shaped to ensure a minimum of 3/4" additional clearance under the differential
- Differential mounting surface is made from 1/2” plate steel and comes with our Differential Stud Eliminator Kit
- outer offset flanges are made from 4130 chromoly
- Axle tubes are made from 1/4” thick DOM tubing, with a 3” outer diameter
- 3/8" ground clearance under the axle tubing
- Uses stock or aftermarket 1986-1995 Toyota Pickup/4Runner brake backing plates and brake assemblies and uses a custom length chromoly axle shaft
- Uses a Toyota 8" differential
- Overall housing length is 51 1/2 inches from mounting flange to mounting flange
1986 Suzuki Samurai
1987 Suzuki Samurai
1988 Suzuki Samurai
1989 Suzuki Samurai
1990 Suzuki Samurai
1991 Suzuki Samurai
1992 Suzuki Samurai
1993 Suzuki Samurai
1994 Suzuki Samurai
1995 Suzuki Samurai
If you have any questions on the use or installation of this product please contact our customer support at (559)-549-6737
